| Hydraulic Dock Levellers |
|
Hydraulic Dock Levellers are hinged type equipment which can be mounted at entry point flush with elevated work shop floor and can be hydraulically adjusted to form a dock with LCV, trucks etc to facilitate and efficient loading/unloading of LCV trucks.
|
| |

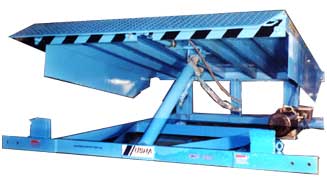

Dock Leveller |
|
Specifications |
Type : Pit model Hydraulically operated Dock Leveler (Custom built)
Capacity : 9000 Kgs (Udl) Cross traffic position
Travel Below Dock Height (mm) : 250 mm
Travel Above Dock Height (mm) : 300 mm
Platform Size : 2730 x 2130 mm (chequered plate)
Operation : 415 V AC Power
Lip : Manual / Hydraulic Operation
|
|
| |
| Features: |
Material Handling starts and ends with Dock Levellers
Hydraulic Dock Levellers are hinged type equipment which can be mounted at entry point flush with elevated workshop floor and can be hydraulically adjusted to form a dock with LCV, Trucks, etc to faciitate quick and efficient loading/unloading of LCV/Trucks
Hydraulic Dock Levellers are hinged type equipment which can be mounted at entry point flush with elevated workshop floor and can be hydraulically adjusted to form a dock with LCV, Trucks, etc to faciitate quick and efficient loading/unloading of LCV/Trucks
Operation: |
The equipment is electrohuydraulically operated by 415 V AC Power pack and push buttons and the platform. Can be raised or lowered above or below horizontal level to adjust to small LCV's or big trucks.
The lip movement can be manually or hydraulically operated
|
Specifications: |
| Cap kg |
Size (L X B) |
Lip Travel (min)
if Hydraulic |
|
| 2000 |
2000 X 2000 |
300 |
| 5000 |
2500 X 2000 |
300 |
| 9000 |
3000 X 2000 |
300 |
|
|
|
|
|
