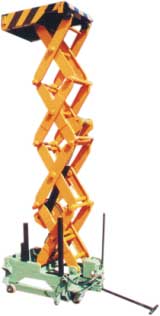

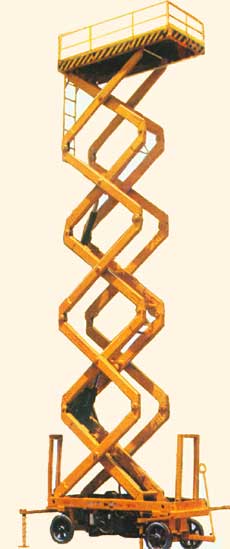

HIGH RISE MAINTENANCE PLATFORMS (SCISSORS TYPE) - TOWABLE :
These are multiple scissors mechanism mounted on a Towable Chassis with 4 solid rubber wheels and a towing hook.
The Scissors design provides maximum stability and larger working area as compared to telescopic type of equipment.
|
 |
|
|

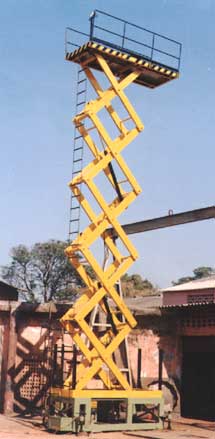

| 500 kg, 10m Welders Platform for L & T (Stationary Type) |
|
450 kg, 10m Platform for EOT crane Maintenance |
|
| |
 |
 |
|
| |

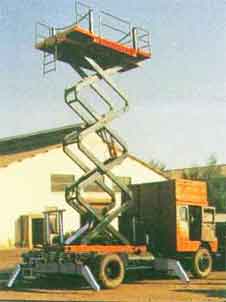

1000 KG 8m, Truck Mounted scissors |
|
|
| |
| Applications |
- Overhead Maintenance within factory sheds
- Overhead Plant Maintenance - Pipelines, Wiring etc.
- High level rack storage systems
- In Heavy Machine Building as Welders Platform
- Maintenance of Buildings
- Mobile flood-lighting units for remote areas.
- Street light maintenance work.
- Movie Photography
- Aircraft Maintenance etc.
|
|
| Model No. |
No. Of
Scissors |
Capacity
(Kgs.) |
Working
Height
(mm) |
Platform Height |
Platform Size |
Max (H1)
(mm) |
Min (H)
(mm) |
Max (H1)
(mm) |
Min (H)
(mm |
| HDX-4000 |
2 |
500 |
5820 |
4000 |
1550 |
2100 |
1000 |
| HFX-6000 |
4 |
450 |
7820 |
6000 |
1300 |
1900 |
1000 |
| HFX-8500 |
4 |
400 |
10320 |
8500 |
2500 |
2600 |
1200 |
| HQX-10000 |
5 |
300 |
11820 |
10000 |
2200 |
2700 |
1200 |
|
