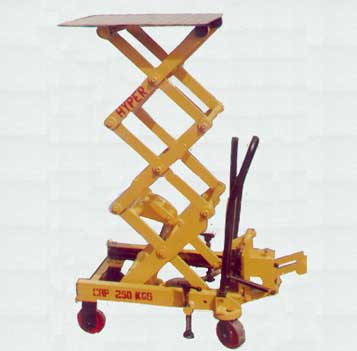

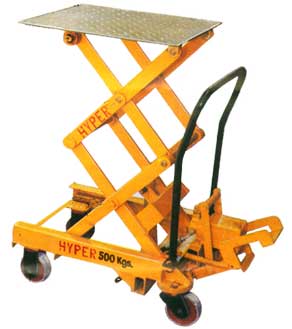

This is a Double Scissors type of Hydraulic Platform operated with Hand/Foot Hydraulics. Double Scissors alone permits a near square platform which makes the equipment very compact and convenient to move around. The dies/moulds stored at a height of 350mm or more can be transfered on to the platform which has adjustable height.


Applications
  • Die Loading.
  • Machine Feeding.
  • Part Of Assembly Line.
  • Unloading from LCV's.
Specifications
Model Cap kg Max  Platform
Height (mm)
H1		 Min Platform
Height (mm)H		 Platform Size
(L x B)		 Lifting Operation
Versilite 500 1000 350 600 x 500 Hand Pump
Versilite 'LH' 500 1000 190 600 x 500 Hand Pump
Versilite 'TS' 250 1325 400 600 x 500 Hand Pump
Mytilite 1000 1300 450 750 x 600 Hand Pump
Mytilite 'TS' 500 1725 530 750 x 600 Hand Pump
